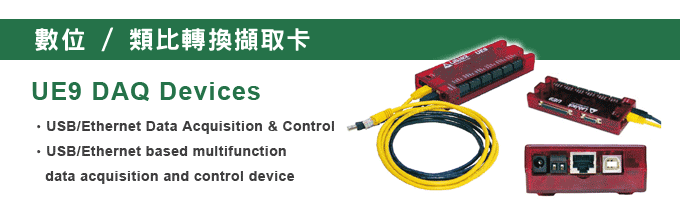

  UE9 DAQ Devices

  U12 DAQ Devices

目前位置:類比訊號擷取/UE9 DAQ Devices

類比訊號擷取DAQ DATA

Analog Inputs

The LabJack UE9 has 14 external analog inputs (AIN0-AIN13). AIN0-AIN3 are available on screw terminals and also on the DB37 connector. All 14 analog inputs are available on the DB37 connector.

Each analog input can be configured individually as unipolar (four ranges from 0-5 volts to 0-0.625 volts) or bipolar (±5 volts). Analog input resolution is 12-bits at max speed (12 us conversion time), increasing up to 16-bits at slower speeds (2.7 ms conversion time).

Command/response (software timed) analog input reads typically take 1.2+ ms depending on number of channels and communication configuration. Hardware timed input streaming has a maximum rate that varies with resolution from 250 samples/s at 16-bits to 50+ k samples/s at 12-bits.

The UE9-Pro has all the features of the normal UE9 with the addition of an auxiliary low-speed hi-resolution (24-bit) sigma-delta ADC. This converter takes about 125 ms per sample and provides an effective resolution of about 20-bits (18-bits noise free) over the 0-5 or +/-5 volt ranges. Linearity and accuracy are also improved compared to the normal converter.

Analog Outputs

The LabJack UE9 has 2 analog outputs (DAC0 and DAC1) that are available both on screw terminals and the DB37 connector. Each analog output can be set to a voltage between 0 and 4.9 volts with 12-bits of resolution.

The analog outputs are based on a true voltage reference.

The analog outputs are updated in command/response mode, with a typical update time of 1.2-4.0 ms depending on communication configuration.

Features

•14 Analog Inputs (12-16 Bits Depending on Speed)
•UE9-Pro Adds 24-bit Low-Speed ADC for 20-Bit Effective Resolution
•±5 or 0-5 Volt Maximum Analog Input Range
•2 Analog Outputs (12-Bit, 0-5 Volts)
•23 Digital I/O
•Up to 2 Counters (32-Bits Each)
•Up to 6 Timers (Pulse Timing, PWM Output, Quadrature Input, ...)
•Supports SPI, I2C, and Asynchronous Serial Protocols (Master Only)
•Supports Software or Hardware Timed Acquisition
•Maximum Input Stream Rate of 50+ kHz (Depending on Resolution)
•Capable of Command/Response Times As Low As 1.2 Milliseconds
•Built-In Screw Terminals for Some Signals
•USB 2.0/1.1 Full Speed Interface
•Ethernet 10Base-T Interface
•Dual-Processor Design with 168 MHz of Total Processing Power
•Electrical Isolation Possible with Ethernet Interface
•Wireless DAQ Possible with Ethernet Interface and 802.11 Bridge
•No Power Supply Needed for USB Operation
•Modbus/TCP Supported in Hardware
•Drivers Available for Windows, Linux, Mac and Pocket PC
•Universal Power Supply with Clips (Australia, Europe, UK, USA)
•Enclosure Size Approximately 3" x 7" x 1" (75mm x 185mm x 30mm)
•Rated for Industrial Temperature Range (-40 to +85 Degrees C)
