目前位置:類比訊號擷取/U12 DAQ Devices |
|
|
|
|
類比訊號擷取DAQ
DATA |
|
|
|
|
|
|
Analog
Inputs |
|
|
|

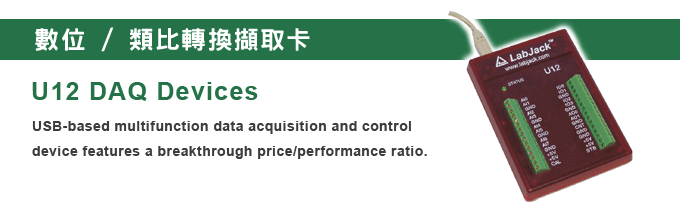

The LabJack U12
has 8 screw terminals for analog input signals
(AI0-AI7).These can be configured individually as 8
single-ended channels, 4 differential channels, or
combinations in between. Each input has a ±10 volt
input range, 12-bit resolution,and an input bias
current of ±90 microamps. Differential channels can
make use of the low noise precision PGA to provide
gains up to 20.
The LabJack U12 is capable of both software and
hardware timed acquisition. When using software
timed acquisition (also called command/response),
the PC sends a command to the LabJack, and it
responds with data.This mode can acquire 4 channels
at up to 50 samples/second per channel, or 8
channels at up to 25 samples/second per channel.
When using hardware timed acquisition, the PC sends
a command to the LabJack telling it to start a burst
or stream mode acquisition. Both burst and stream
mode take advantage of the LabJack's precision
timing crystal and high-speed sample buffer. In
burst mode, up to 4,096 samples will be acquired
from 1-4 channels at up to 8,192 samples/second and
stored in the buffer. After the acquisition is
complete,the data is transferred to the PC. A
hardware trigger can be configured for burst mode
that starts the acquisition when a digital input
changes state. In stream mode, data is acquired from
1-4 channels at up to 1,200 samples/second and
stored in the LabJack buffer. Simultaneously, the
data is transferred from the LabJack buffer to the
PC buffer, allowing the data to be streamed to disk
continuously. |
|
|
Analog
Outputs |
|
|
|
The LabJack U12
has 2 screw terminals for analog output signals (AO0
& AO1). Each analog output can be set to a voltage
between 0 and the supply voltage (+5 volts nominal)
with 10-bits of resolution. The analog outputs are
controlled in command/response mode at up to 50 Hz
per channel. |
|
|
Features |
|
|
|
•8
Single-Ended, 4 Differential 12-Bit Analog Inputs
•±10 Volt Analog Input Range
•PGA with Gains of 1, 2, 4, 5, 8, 10, 16, or 20 V/V
•Up to 8 kSamples/Sec (Burst) or 1.2 kSamples/Second
(Stream)
•Supports Software or Hardware Timed Acquisition
•Supports Triggered Acquisition
•2 Analog Outputs
•20 Digital I/O (Up to 50 Hz per I/O)
•32 -Bit Counter
•Watchdog Timer Function
•Easy to Use Plug-and-Play USB Device ( USB 2.0/1.1
Low Speed Interface)
•Connect Up to 80 LabJacks to One USB Port
•Complete Software Control, No Jumpers or Switches
•No Power Supply Needed
•Includes Application and Driver Software
•Includes LabVIEW Vis
•Works with Windows 98SE, ME, 2000, XP or Vista
•Includes Cable and Screwdriver
•Money Back Guarantee
•Approximately 4" x 6" x 1”
•Rated for industrial temperature range |
|
|
|
